PillMate AI
about.
PillMate is a compact group product design project focused on form factor development, professional CAD modelling, and technical documentation. The work centres on designing a clear, manufacturable enclosure and producing detailed drawings suitable for communication with engineers or manufacturers.
My contribution focused on CAD development, packaging design, and the creation of professional drawings, rather than product branding or feature expansion.
challenge.
The main challenge was balancing a compact form factor with usability and manufacturability. This required careful consideration of internal layout, tolerances, and clear documentation to ensure the design could be understood and produced accurately.
results.

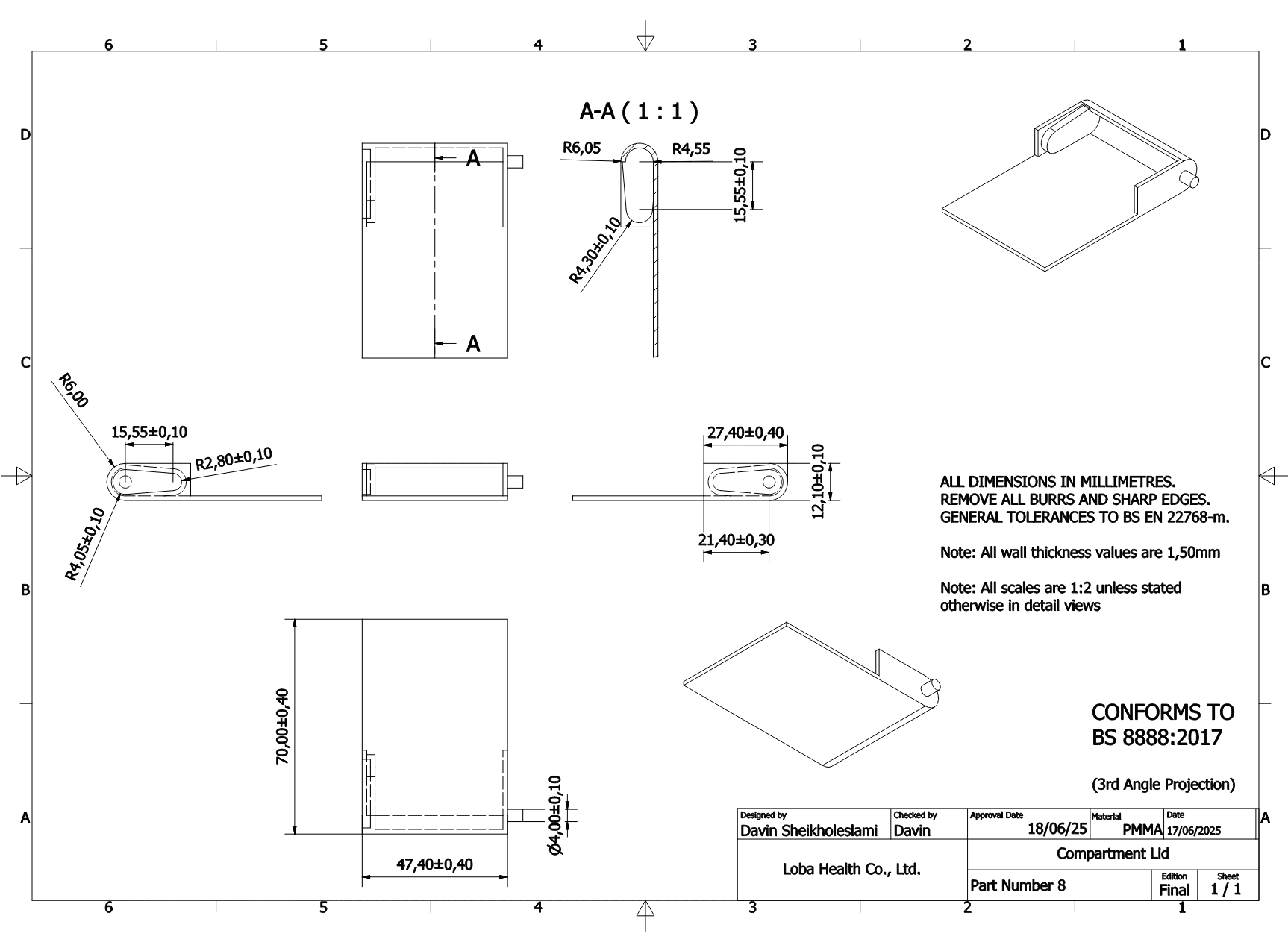

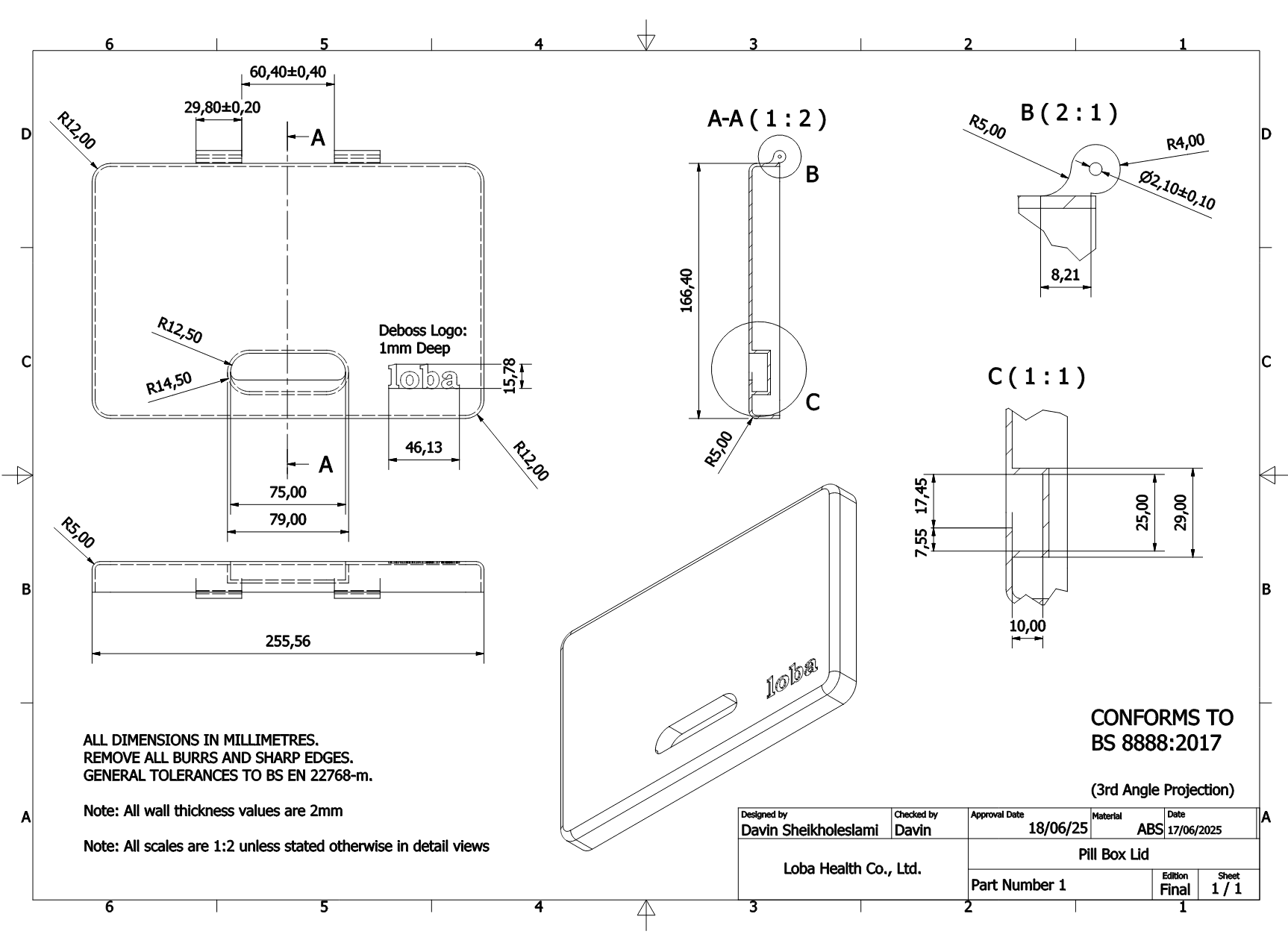

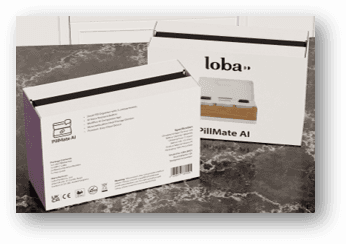

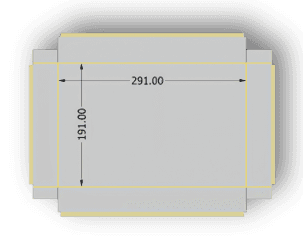

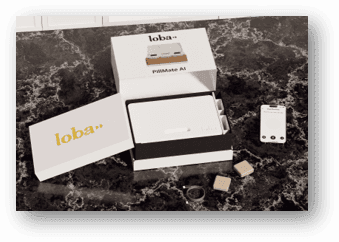

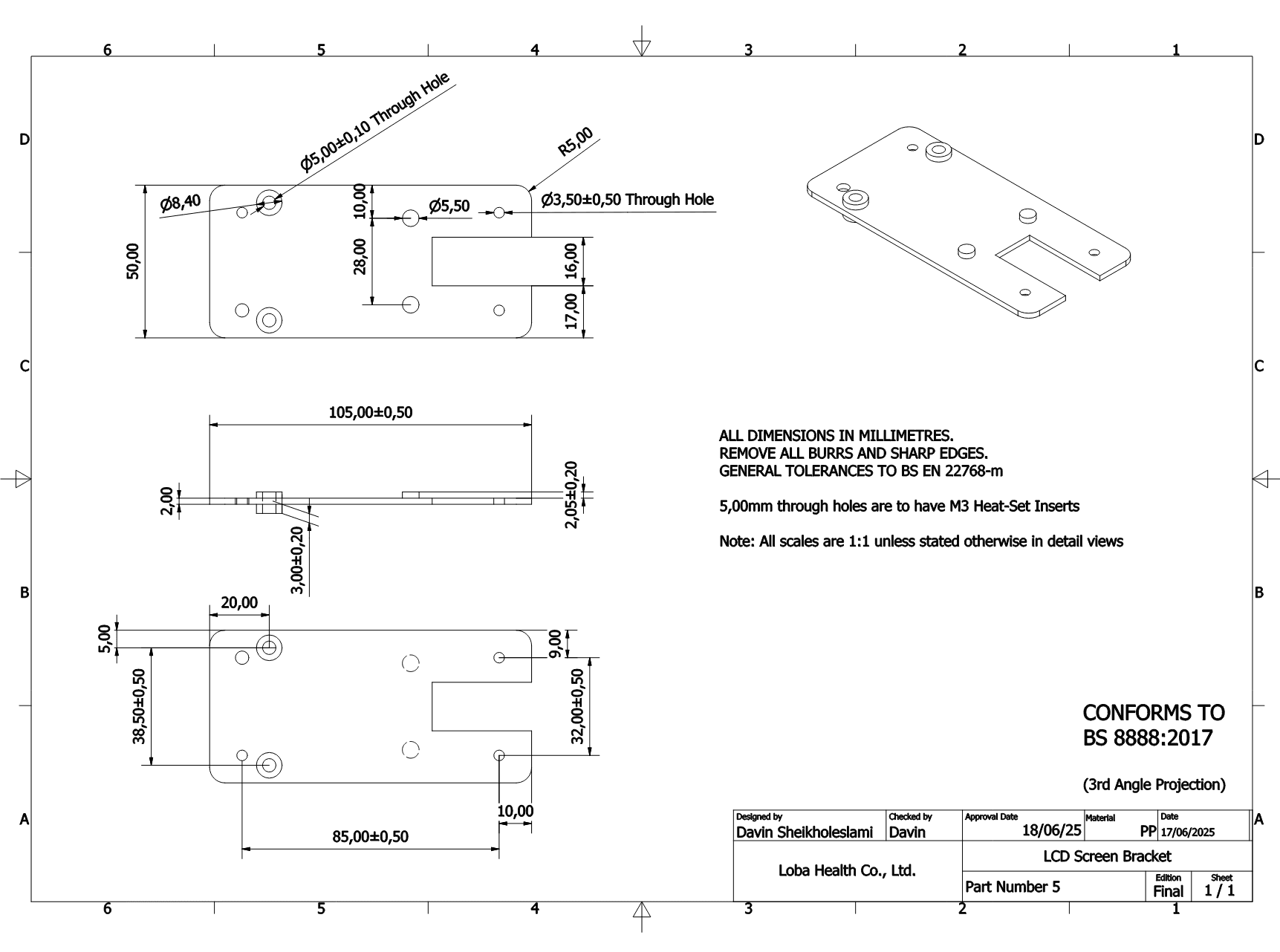

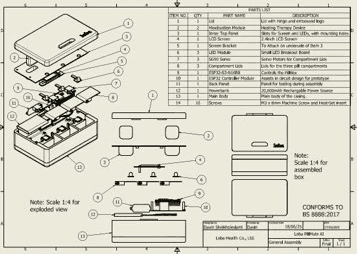

The project resulted in a complete set of CAD models, some professional drawings, and packaging concepts suitable for technical communication and further development. The work demonstrates proficiency in precise modelling, documentation standards, and design for manufacture.
